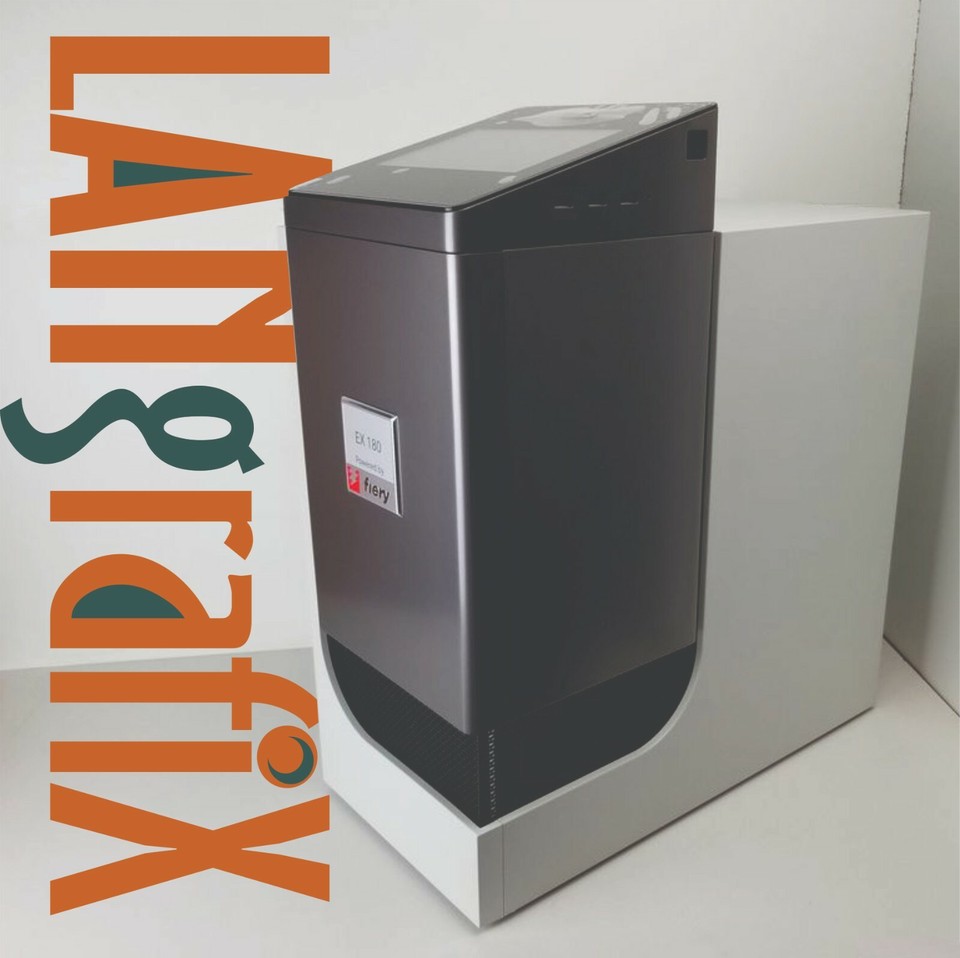

LANgrafix-rebuilt Xerox FIERY EX 180 Print Server

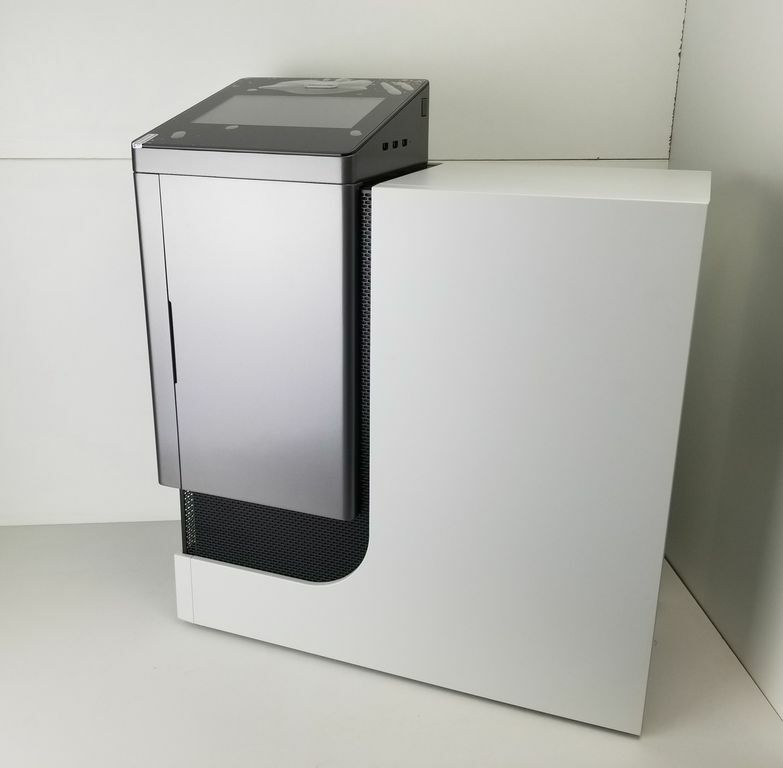

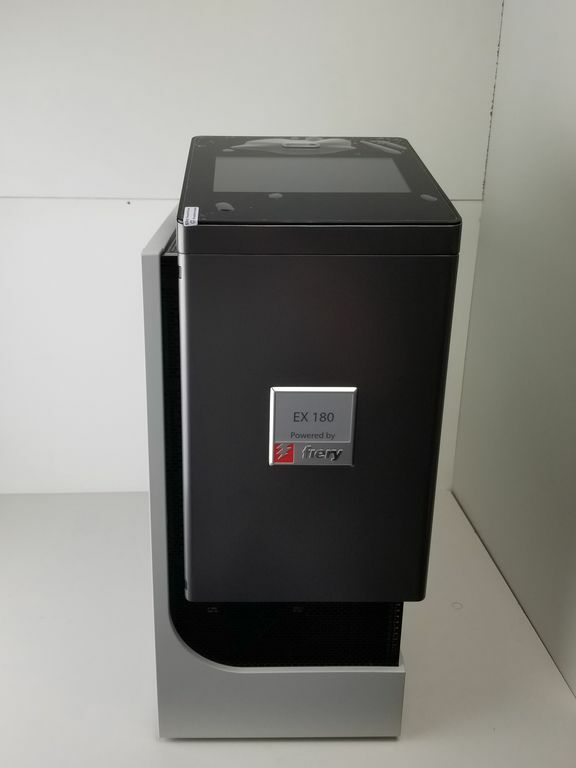

XEROX FIERY EX 180 FIERY server – Front Bezel

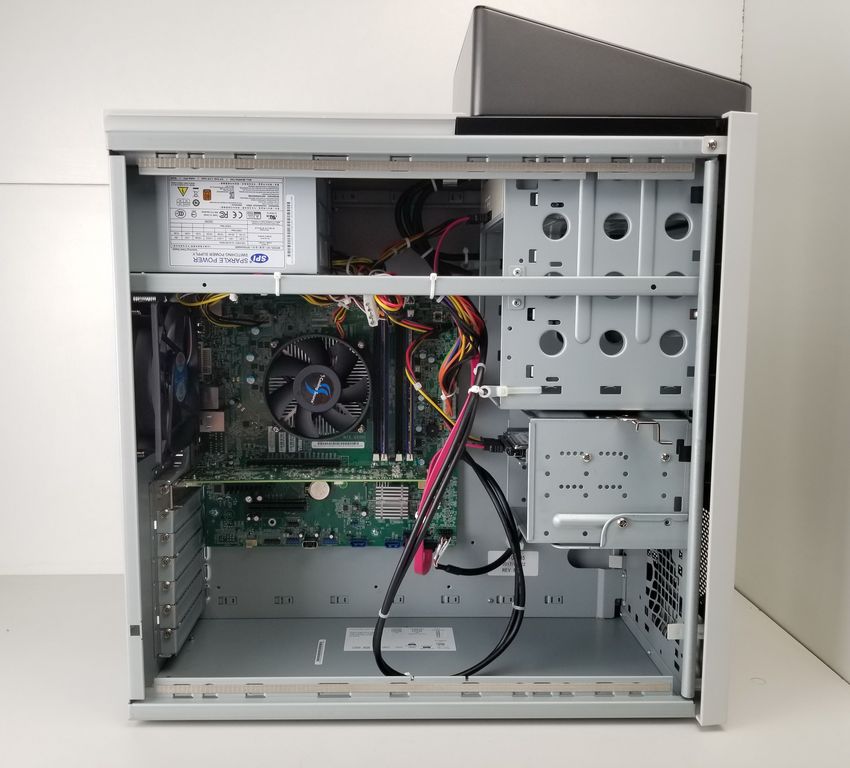

Xerox FIERY EX 180 NX PRO – internal view

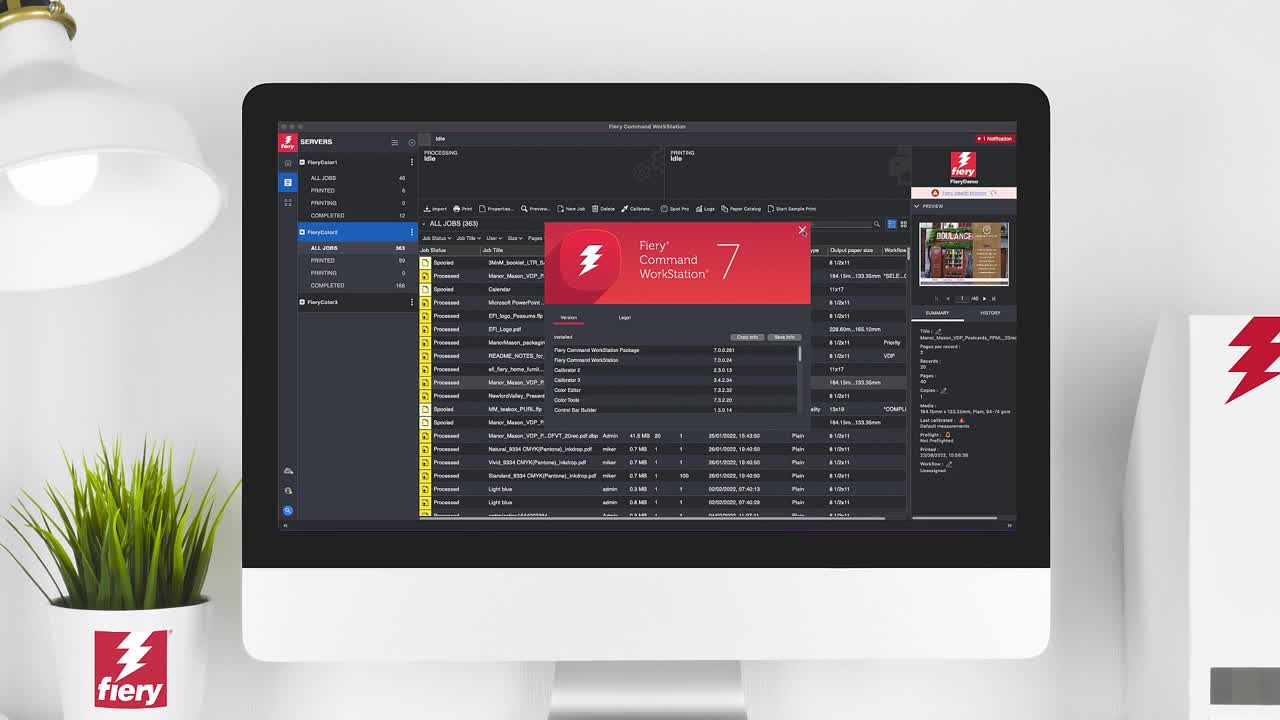

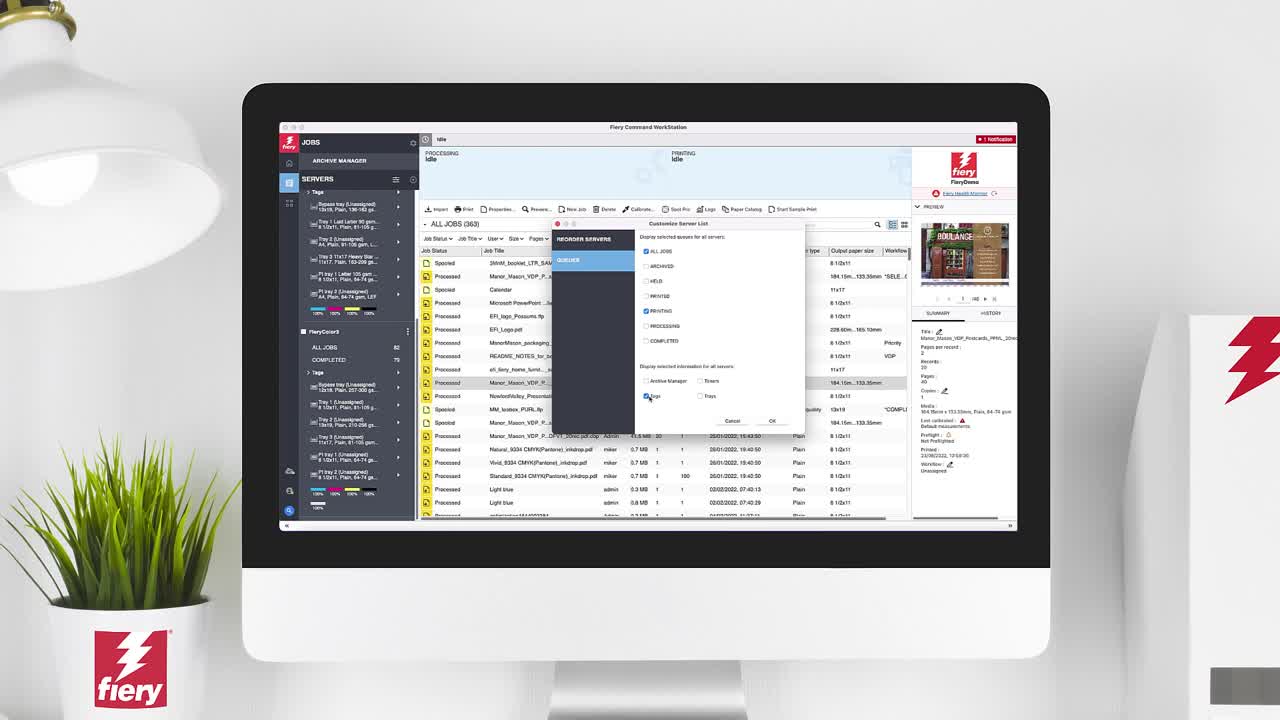

FIERY Command WorkStation v7 job view (EX 180 example)

FIERY IMPOSE makeready module (EX 180 workflow example)

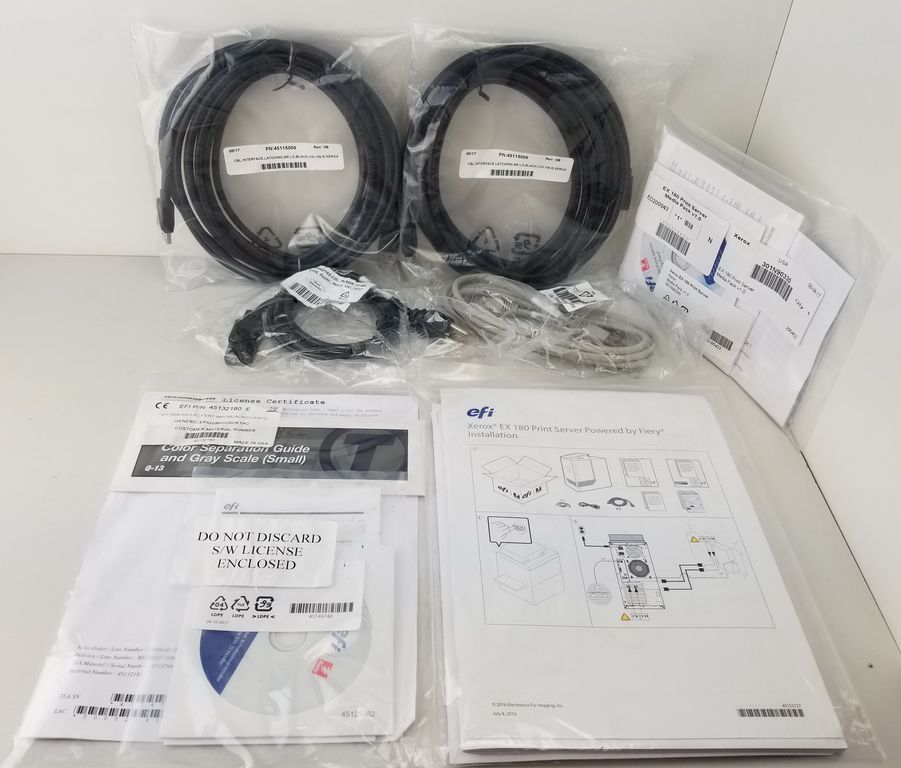

Xerox FIERY EX 180 media kit and IF Cables overview

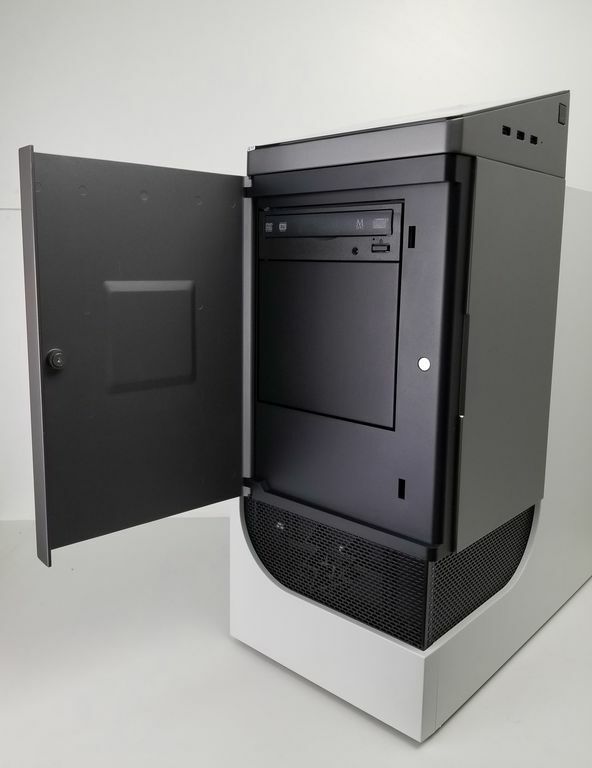

XEROX FIERY EX 180 server – Front Bezel w- Open Face

Xerox FIERY EX 180 “UPGRADED” Print Server

For Xerox® Versant® 180 Press – external FIERY® EX 180 print server powered by FIERY® FS200 Pro

LANgrafix uniquely includes FIERY Graphic Arts PRO Package, FIERY Performance Package (with ILS capability), and FIERY JOBMASTER + IMPOSE permanently embedded/upgraded to this server (a combined add-on upgrade package worth a $20,000+ typical retail value) at no additional cost. Server Package also includes all print interface cables, SSD double capacity upgrade, memory double capacity upgrade, motherboard upgrade, and complete FIERY System Recovery Media / Service & User Documentation / Complete FIERY Applications Package v7.1 Kit

US $4,799.99

Pay with Zelle®, ACH (Electronic Check), Bank Wire Transfer, MoneyGram, or WesternUnion

Pay via Zelle, ACH, Wire, MoneyGram or WesternUnion

You may send payment via Zelle, ACH (Electronic Check), Bank Wire Transfer, MoneyGram, or WesternUnion directly to LANgrafix. Please reference “Xerox FIERY EX 180 UPGRADED Print Server” in the subject line and include your complete name and contact information in the email body plus your preferred payment type.

Zelle, ACH (Electronic Check), Bank Wire Transfer, MoneyGram, or WesternUnion recipient details (name / e mail / phone / account / etc.) can be confirmed by e mail before you send funds.

All sales are final on all FIERY servers sold by LANgrafix.

Please verify compatibility with your exact Xerox Versant 180 Press configuration before ordering. Contact us if you are unsure which FIERY controller variant you require.

Availability: In stock – rebuilt to order, 2–3 day build and test time required for each server.

Condition: Professionally refurbished FIERY server with brand new motherboard and FIERY print video board.

Brand: Xerox / EFI FIERY

Worldwide Shipping: FedEx, UPS or USPS – fully insured, 24"x24"x18" carton, approx. 55 lbs.

International: HTS Code 844399, in most regions, and insured/declared for suggested US $300.

Highlighted FIERY workflow tools

The Xerox FIERY EX 180 Print Server delivers a complete set of FIERY workflow tools for the Versant 180 Press.

Centralized job management through FIERY Command WorkStation across multiple FIERY servers.
FIERY IMPOSE to simplify imposition and support template-driven makeready for common layouts.
FIERY JOBMASTER to manage tabs, inserts, sections, and page-level editing in one environment.
Support for automated workflows using hot folders, virtual printers and integration with upstream tools.
Optional access to FIERY Graphic Arts PRO features such as advanced preflight and soft proofing.

Hardware / platform overview

The external FIERY EX 180 server platform is tuned for productive Versant 180 workflows.

FIERY FS200 Pro software platform, matched to the Xerox Versant 180 engine configuration.
Intel® Core™ i5 processor with Turbo Boost and quad-core architecture for demanding RIP tasks.
1 TB hard drive for job storage combined with LANgrafix SSD capacity upgrades for performance and durability.
4 GB DDR system memory as standard, with LANgrafix upgrades applied as part of each rebuild.
Internal DVD-RW drive and multiple USB ports for importing jobs and backup when required.
Front-mounted touchscreen interface and QuickTouch-style access for status, queues and basic controls.

Color and imaging technology

EX 180 applies FIERY color and imaging technology to keep the Versant 180 printing with consistent, predictable color.

FIERY Ultra Smooth Gradients technology to improve smoothness in vector blends and gradients.
Support for media-based calibration, profiling and spot-color refinement through FIERY tools.
ICC-based color management to handle RGB, CMYK and mixed workflows reliably.
Color controls suitable for customer-critical marketing collateral, brand colors and photography.
Optional FIERY color and verification tools for shops that require documented color control.

Productivity, VDP and performance

The FIERY EX 180 controller is designed to keep the Xerox Versant 180 Press running at rated speed on complex and variable jobs.

Spool–RIP–Print simultaneously to maximize throughput during busy production windows.
Support for long-sheet capability and a wide range of substrate sizes up to 13 x 26" (330 x 660 mm) where configured on the press.
Automation features in Command WorkStation to group, schedule and rerun common work more efficiently.
Designed to support leading variable data formats so that personalized pieces can be produced reliably.
Adobe® PDF Print Engine-based processing for consistent, predictable handling of transparency and overprint behavior.

File formats and connectivity

EX 180 supports common file formats used in production and integrates with standard network print workflows.

Support for PDF and PostScript® print workflows, as well as typical office file paths through FIERY tools.
Submission options including drag-and-drop to Command WorkStation, hot folders and WebTools.
Ethernet connectivity to integrate into existing TCP/IP-based LAN environments.
Compatible with Windows® and macOS® client systems in mixed-platform shops.
Supports integration with workflow solutions such as Xerox® FreeFlow® Core and other FIERY-enabled automation tools.

Security and controller footprint

The FIERY EX 180 Print Server provides a range of security controls at the controller level.

IP filtering support to help restrict access to trusted network ranges.
Secure Erase and disk management options to help protect sensitive job data.
Backup and restore capabilities plus FIERY System Restore to recover a controller quickly if needed.
User authentication via LDAP and support for directory-based environments.
Support for IPsec, SSL/TLS and certificate management to secure network communication to the server.

Included application views

LANgrafix supplies every Xerox FIERY EX 180 with a complete FIERY applications suite and media kit, installed, updated and tested on the rebuilt controller before shipment.

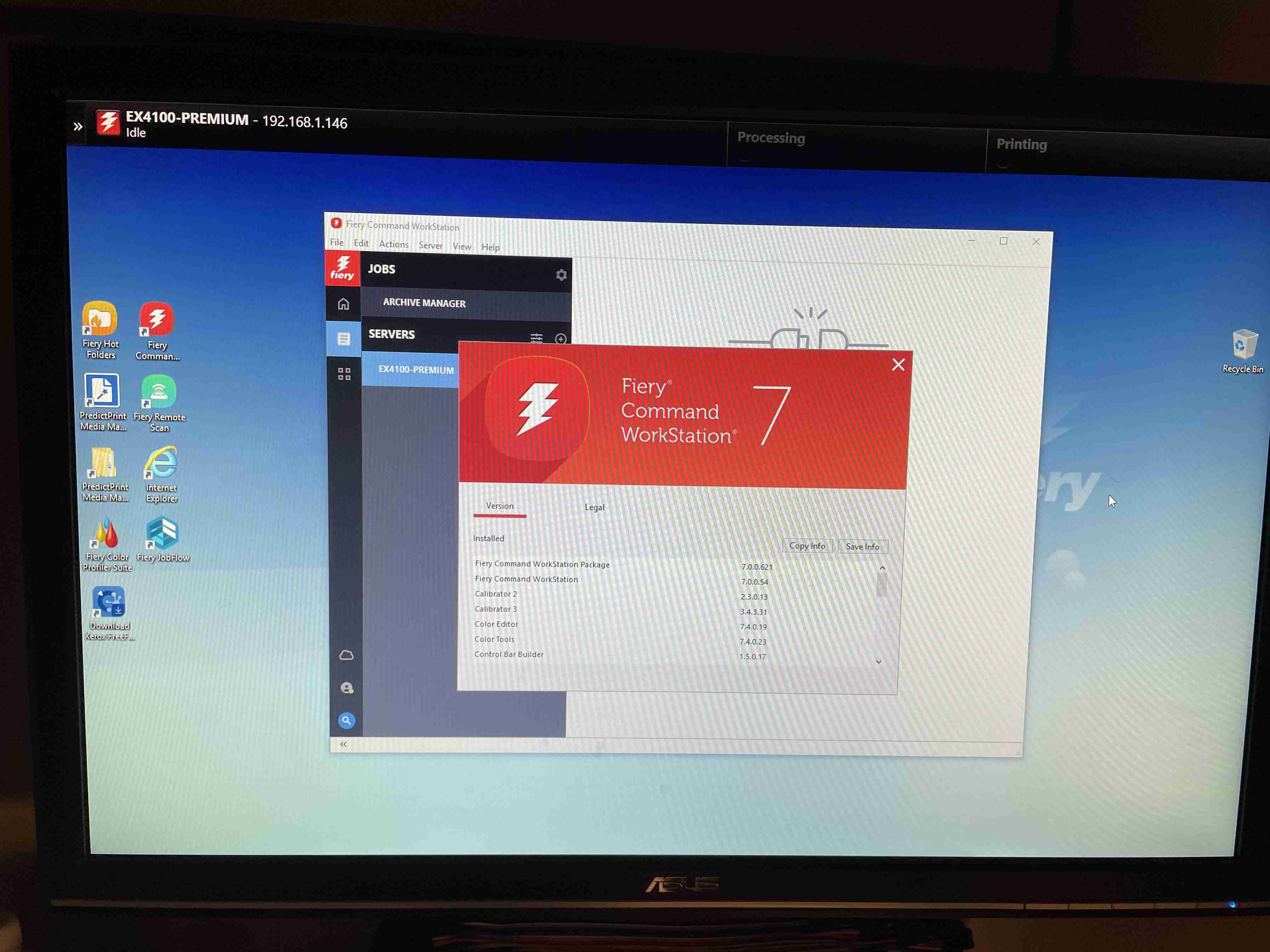

FIERY Command WorkStation v7 live job view (EX 180 example)

Windows 10 Enterprise LTSC base OS

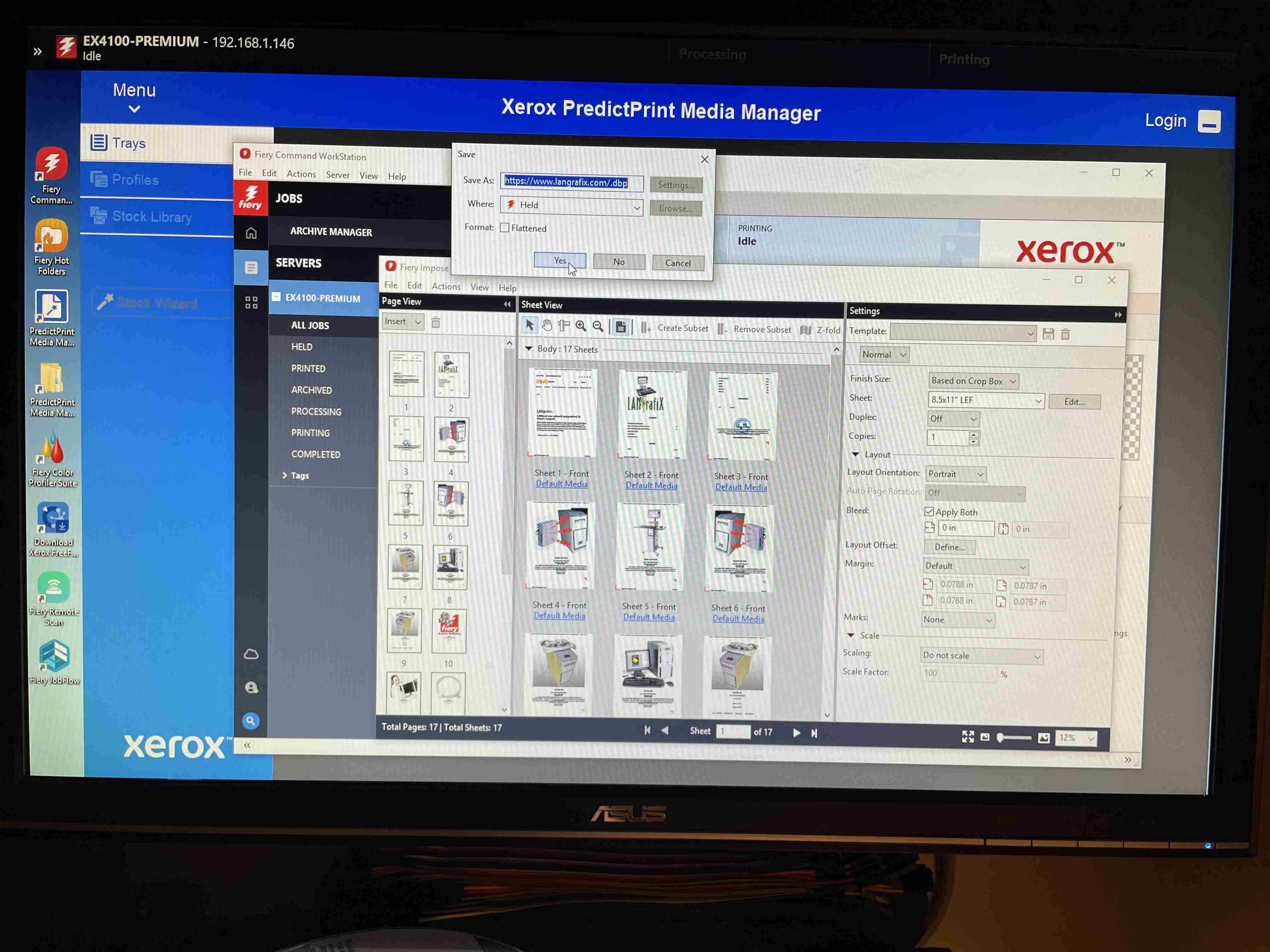

FIERY IMPOSE makeready module (EX 180 workflow example)

LANgrafix is a specialized FIERY® controller shop focused on rebuilding, upgrading, and supporting external and embedded FIERY servers for XEROX, KONICA MINOLTA, CANON, RICOH, SHARP, KYOCERA, OKI and RISO digital production engines.

Each Xerox FIERY EX 180 Print Server is rebuilt, updated and fully tested by LANgrafix before shipment. We are a small, detail-driven shop that understands these controllers at the component and software level, including recovery media, service documentation, and advanced add-ons like FIERY Graphic Arts PRO Package, FIERY Performance Package, and FIERY JOBMASTER + IMPOSE.

Phone: 847•760•9282 | E‑mail: customercare@langrafix.com | Location: Saint Charles, Illinois USA.

Engine compatibility and typical applications

The FIERY EX 180 Print Server is configured to drive the Xerox Versant 180 Press in light production, CRD and print-for-pay environments.

Designed specifically for the Xerox® Versant® 180 Press EX 180 configuration.
Well-suited to short-run color, mixed-media jobs, booklets and marketing collateral.
Appropriate for environments that demand reliable color and repeatable makeready across similar jobs.
Ideal for central reprographics departments, in-plant production and smaller print-for-pay shops.
LANgrafix can help confirm the appropriate EX 180 configuration and software image for your Versant 180 before ordering.
